Mini MIRI® Incubators
Mini MIRI® Incubators
Built on the sturdy and dependable MIRI® architecture by Esco Medical, the Mini MIRI® Incubator offers a consistent culture environment. Direct heat regulation in the compact design aids in preventing vapor condensation, enables faster temperature and gas recovery, and overall provides better and a more precise temperature uniformity.
For Embryo Culture
Download
Catalogue
Watch
Video

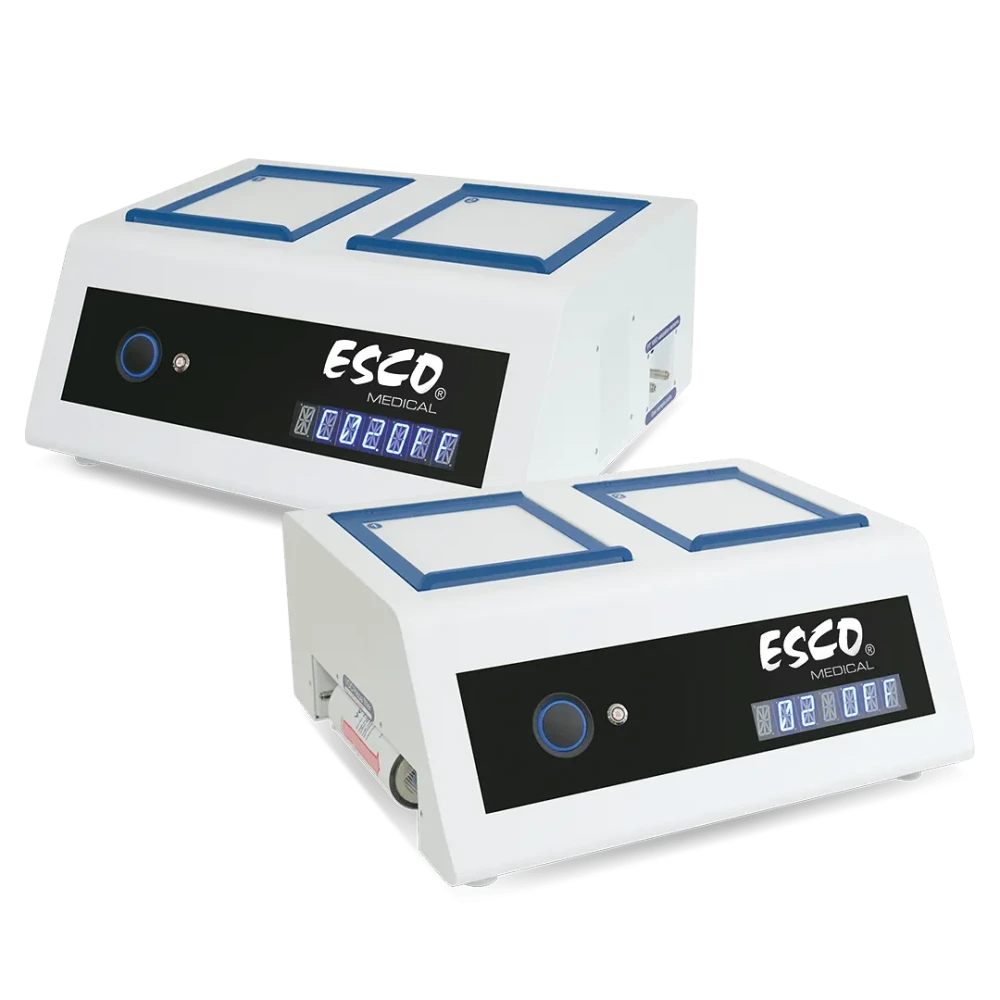

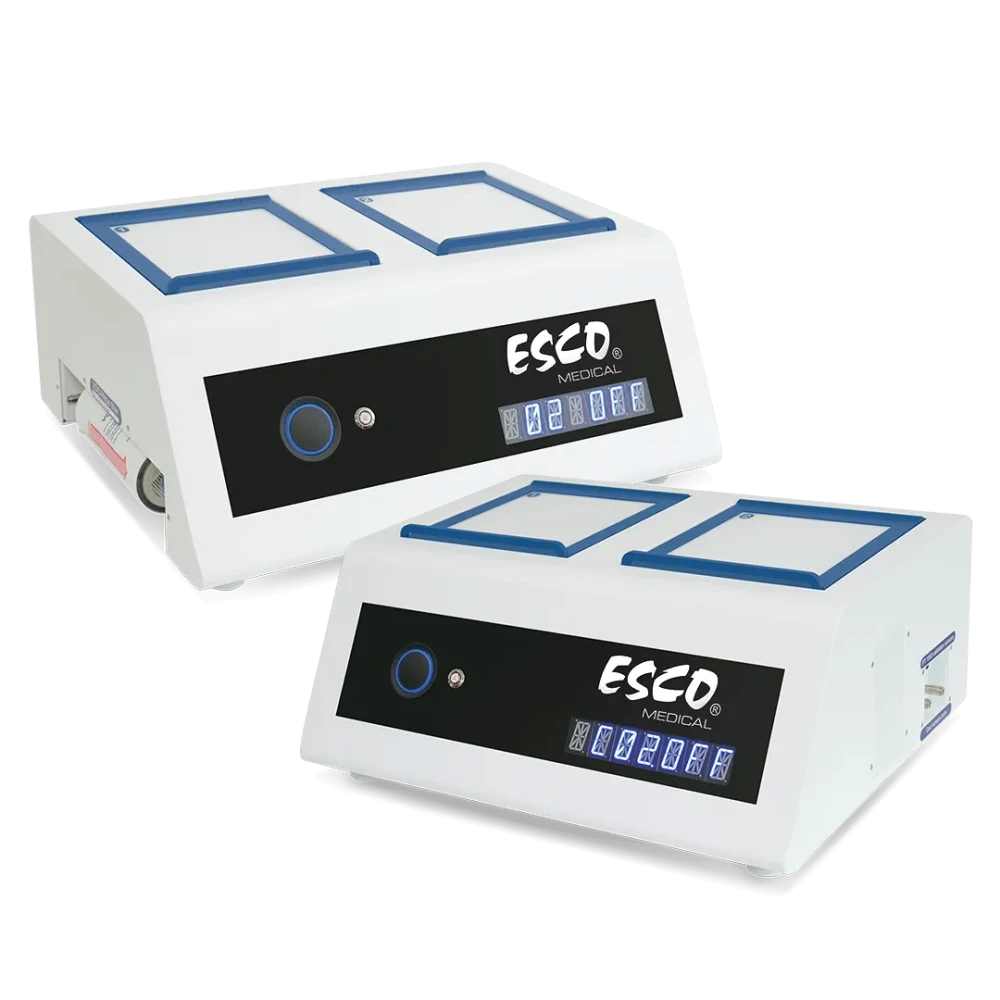

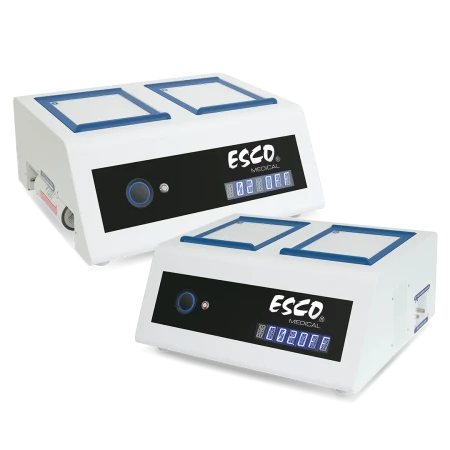

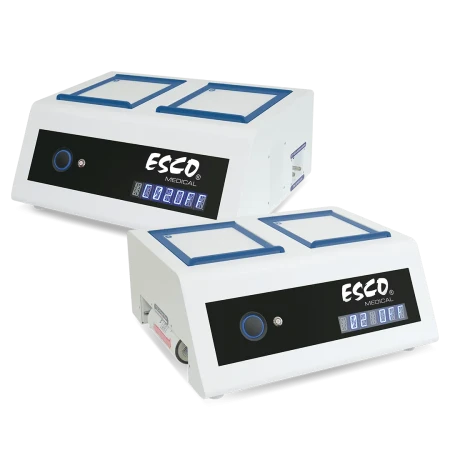

To meet the environmental needs of your culture, Mini MIRI is available in two variations.
The standard MIRI Multiroom incubator is the model for the Mini MIRI® Dry Incubator, which includes two chambers. For IVF laboratories that value economy and footprint, this little version of the MIRI® is ideal.
The Mini MIRI® Humidity is a variation of a humidified incubator. It is a benchtop incubator built using the dependable and robust MIRI design. The compact design's direct heat also helps minimize vapor condensation and enables quicker temperature and gas recovery.
The temperature parameters in each of the Mini MIRI®'s two independent chambers can be individually controlled. This is perfect because it prevents any interference, such as a temperature drop caused by opening the lid of one chamber, from affecting the other.
Furthermore, there is no heat crossing from adjacent chambers, making calibration much simpler. There are a total of 4 temperature-controlled places on the Mini MIRI®. That equals two points for each chamber, one on the heated lid and one on the bottom. Another fantastic feature of the Mini MIRI® is its heated lid, which improves temperature consistency.
Utilizing multiroom incubators has several benefits. The quick recovery of temperature and gas characteristics after opening a chamber is a significant advantage.
*If the lid has not been opened for more than 30 secs.
IVF professionals deal with priceless, delicate embryos, and frequently, even the slightest details have a big impact. The Mini MIRI®'s LED display makes it easier to see from a distance. Additionally, the glass lid tops can be written on while serving as chamber insulators, which is a very helpful feature for organizing.
The built-in gas mixer enables the introduction of pure gasses and accurate control of the gas phase composition inside the chambers. The required gas input can be changed with it.

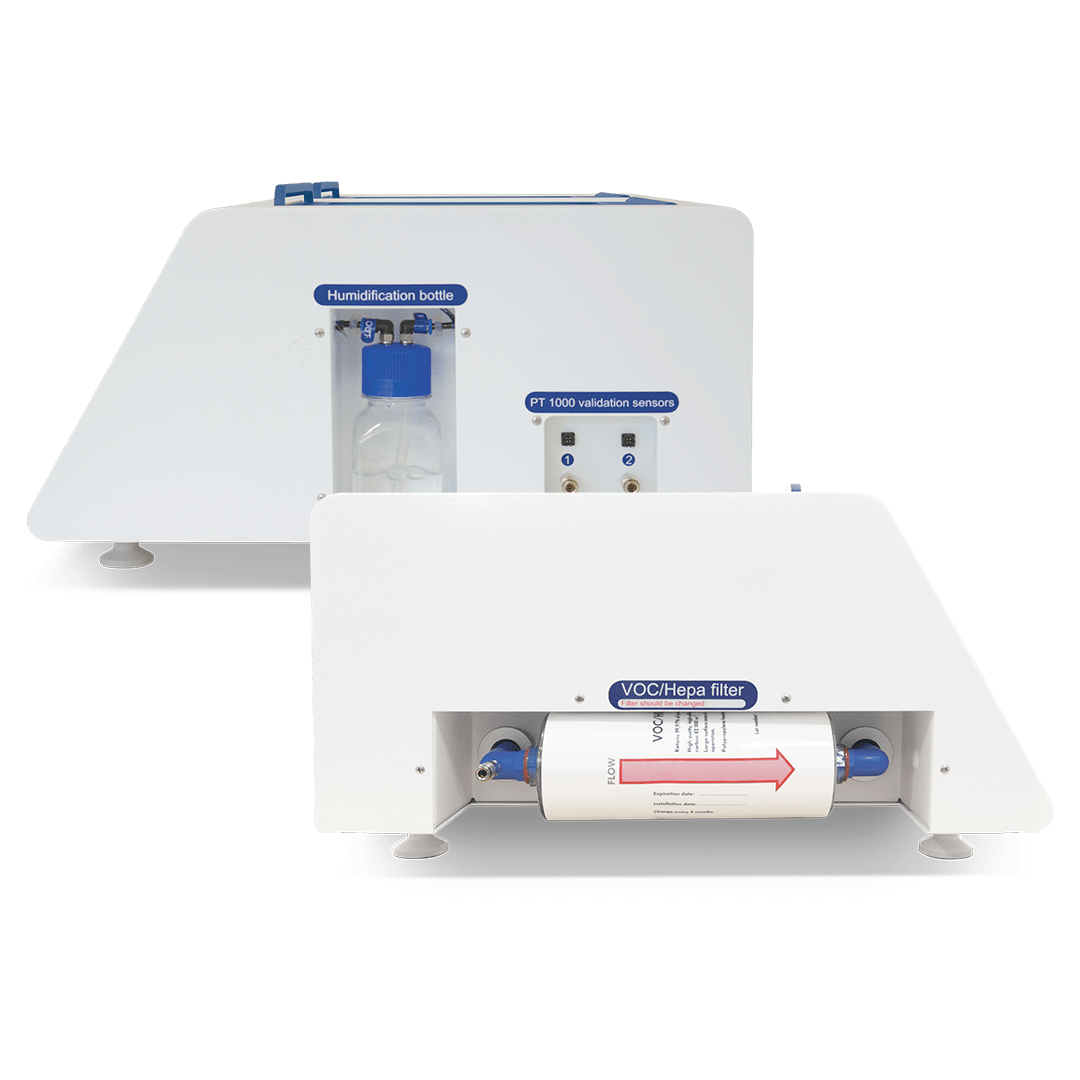

The basic circuitry is fully independent of the built-in PT 1000 Temperature Sensors. Similar gas sampling ports are supplied for each of the two independent chambers. The Mini MIRI® Dry can be connected to an external device, such as the Esco MIRI® GA, for external validation on gas and temperature validation.
The Mini MIRI® has a control panel, display, and data logging software loaded. It is fully equipped and easy to use. The Mini MIRI® can be connected through USB to feature-rich, simple-to-use data logging software that is loaded on any common PC. One computer can control and connect to multiple machines. It is convenient to observe all of the machine's real-time parameters because all parameters are displayed in full. These consist of the temperature of each monitored temperature and gas concentration point, as well as the set points for all gas input pressures and flow rates. The data logger records the machine's performance information while it is used. Graphs can be used to display them. These graphs are available for viewing that show all machine performance information, including alerts. Weekly reports are also generated automatically by the data logger, making it more user-friendly. Histories of any alarm events are logged as well.
Guarantees temperature recovery in less than one (1) minute (if the lid has
not been opened for more than 30 sec.).
The menu can be accessed, settings can be changed, and parameter values can be adjusted with the Rotatory Key.
The best system is one with two chambers since any disruption, such as a temperature dip after opening the lid, has no effect on the other chambers. Additionally, calibration is significantly easier because there is no heat crossing from adjacent chambers.
General Specifications
| Specifications | Mini MIRI® Dry | Mini MIRI® Humidity |
|---|---|---|
| Overall Dimensions (W x D x H) | 525 x 420 x 230 mm (22.7 x 16.5 x 9") | 525 x 420 x 230 mm (22.7 x 16.5 x 9") |
| Weight | 22 kg (48.5 lbs) | 22 kg (48.5 lbs) |
| Material | Mild steel / Aluminum / PET / Stainless steel | Mild steel / Aluminum / PET / Stainless steel |
| Power Supply | 115V 60Hz or 230V 50Hz | 115V 60Hz or 230V 50Hz |
| Power Consumption | 160 W | 160 W |
| Temperature Control Range | 24.9 - 40 °C | 24.9 - 40 °C |
| *CO2 Gas Consumption | <2 Liters per hour | <4 Liters per hour |
| **N2 Gas Consumption | <8 Liters per hour | <12 Liters per hour |
| Gas Input Pressure |
0.4 to 0.6 bar (5.80 - 8.70 PSI) | 0.4 to 0.6 bar (5.80 - 8.70 PSI) |
| Operating Altitude | Up to 2000 meters (6560 feet or 80kPa - 106kPa) | Up to 2000 meters (6560 feet or 80kPa - 106kPa) |
| Shipping Weight | 30 kg (66.1 lbs) (Including the pallet's weight) | 30 kg (66.1 lbs) (Including the pallet's weight) |
| Shipping Dimensions | 630 x 525 x 500 mm (24.8 x 20.7 x 19.7") (device on the pallet) | 630 x 525 x 500 mm (24.8 x 20.7 x 19.7") (device on the pallet) |
* Under normal condition (CO2 set point reached at 6.0%, all lids closed)
** Under normal condition (O2 set point reached at 5.0%, all lids closed)
| Item Code | Model Code | Description |
|---|---|---|
| Mini MIRI® Dry Incubator | ||
| 2070143 | MRI-MINI-D-8 | Mini MIRI® Dry, without Humidification, 230V, 50/60Hz |
| 2070144 | MRI-MINI-D-9 | Mini MIRI® Dry, without Humidification, 115V, 50/60Hz |
| Mini MIRI® Humidity Incubator | ||
| 2070155 | MRI-MINI-H-8 | Mini MIRI® Humidity, 230V, 50/60Hz |
| 2070156 | MRI-MINI-H-9 | Mini MIRI® Humidity, 115V, 50/60Hz |
| Accessories | ||
| 1320003 | MRA-FD | Insert for Falcon® Dishes |
| 1320004 | MRA-ND | Insert for Nunc™ Dishes |
| 1320070 | MRA-VD | Insert for Vitrolife Dishes |
| 1320099 | MRA-NID | Insert for Nipro™ Dishes |
| 1320100 | MRA-LD | Insert for LifeGlobal® GPS Dishes |
| 1320101 | MRA-PD | Insert Without Footprint for Plain Dishes |
| 1320118 | MRA-OD | Insert for SparMED Oosafe® |
| 1320507 | BIRR | Insert for BIRR Dishes |
